Need help on different serial converter wires.

Post by AHappyWalrus »

I am going to be receiving the parts for my DIY USB adapter and I got a different USB 2.0 to UART TTL 6PIN Module Serial Converter CP2102 than the one posted on the usb adapter for dummies page. Just wanted to know which wires I need to use. Thanks! :D

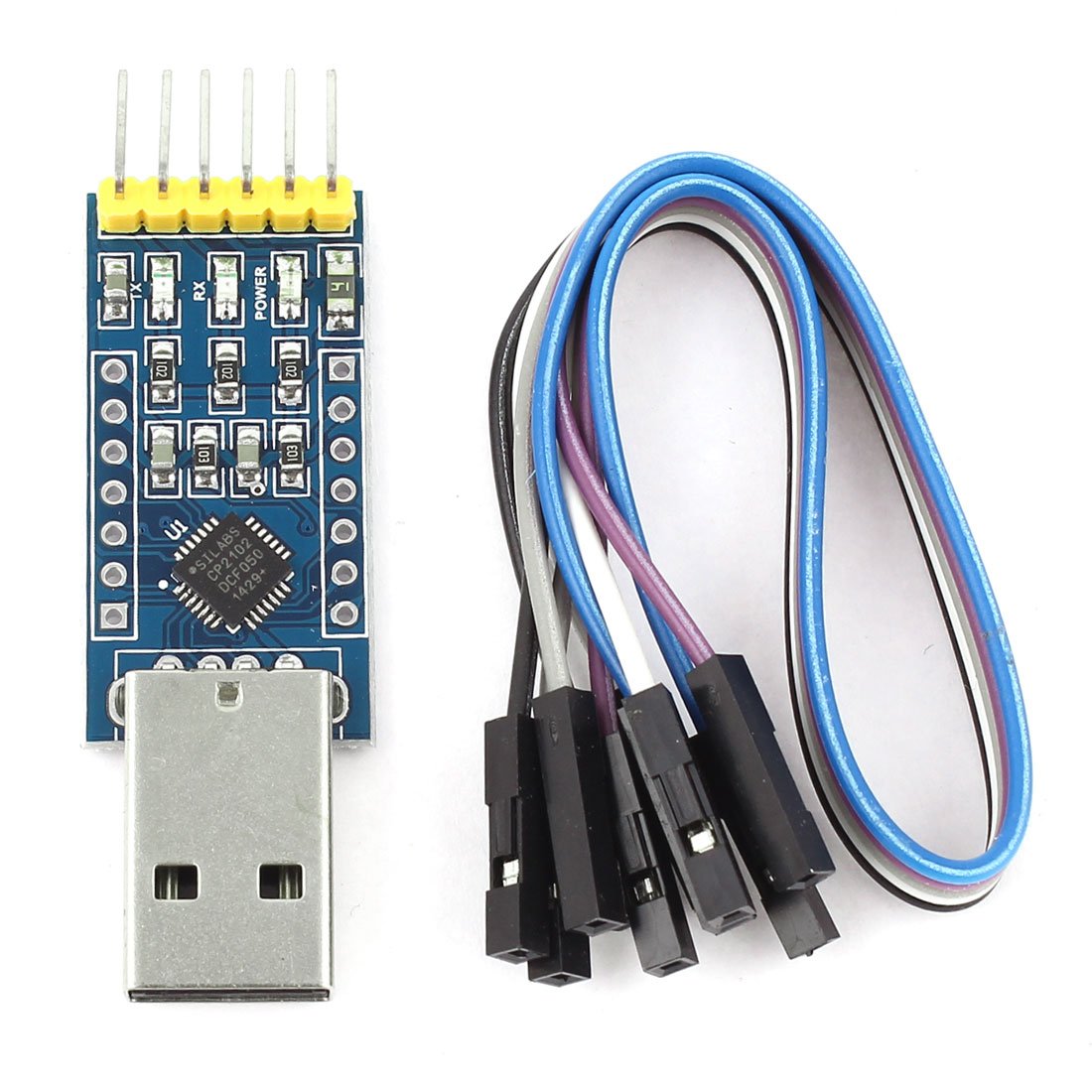

This is it.
Top
User avatar
Goddard
Posts: 13
Joined: Wed Mar 09, 2016 12:18 am

Re: Need help on different serial converter wires.

Post by Goddard »

It should be labeled on the board, or on a diagram that comes with the board. RX to TX and TX to RX and Ground to Ground.
Kubuntu 16.04
Top
AHappyWalrus
Posts: 5
Joined: Fri Jul 15, 2016 4:55 pm

Re: Need help on different serial converter wires.

Post by AHappyWalrus »

Ok thanks I will see when it gets here and post if I need anything else. :D
